Remote and Line Powered ADSL ADSL2 Loop Extenders
  • Click HERE for Remote Powered ADSL Loop Extenders
  • Click HERE for Line Powered ADSL Loop Extenders
  •

Remote Powered ADSL ADSL2 ADSL2+ Loop Extenders

Remote Powered ADSL ADSL2 ADSL2+ Loop Extenders

ADSL remote powered loop extender illustration

Remote Powered Loop Extender Overview

    At present, ADSL has great advantages in terms of bandwidth and performance, and is the major Rural broadband access technology. The ADSL ADSL2 loop extender not only extends the range between the CO and CPE from 3.5km to 10km, but also supports POTS business and improves the access rate of bandwidth.  ADSL ADSL2 loop extenders can help the equipment service provider to extend their reach and more efficiently serve their customers, grow their customer base and increase ROI.

    Since entering the market, ADSL loop extenders are being widely used in many countries all over the world to extend reach, increase speed and provide last mile service.
ADSL Loop Extenders have played a key role in helping Rural Telephone companies provide last mile services.

2 port and 8 port adsl loop extenders

Features

  • ADSL ADSL2+ Loop Extenders Extend ADSL transmission distance from 2.3 miles (3.5km) to 4.2 miles (8km) (0.4mm line diameter), using POTS service
  • Loop Extenders Improve both uplink and downlink, thus improving your existing ADSL user’s signal quality and bandwidth
  • Loop Extenders can by cascaded using more extenders (increases reach to 6.4 miles or 10km)
  • ADSL ADSL2+ Loop Extenders are completely compatible with all ADSL system supplier’s equipment (ADSL, ADSL2, and ADSL2+ )
  • Loop Extenders support all kinds of ADSL ADSL2 ADSL2+ modems and modem/router products produced by a wide variety of manufacturers
  • Remote Powered Loop Extenders are modular and can be rack mounted providing flexible configuration and improving ease of loop extender maintenance
  • Remote power supply can be installed both on CO side or CPE side
  • Waterproof, dustproof and lightning proof
  • ADSL ADSL2 ADSL2 + Loop extenders are available in the following port densities 2-Port, 8-Ports, 16-Ports, and 32-Ports.

Loop Extender Technology Specification

ADSL Loop Extender


Input voltage Powered by ADSL Loop Extender remote power supply 16-116VDC
Power consumption Less than 0.65W
Working Environment Working Temperature -40ºC-+85ºC
Relative Humidity 5%~95% (non-condensing)
With damp-proof, anti-sensis, mildew-proof, lighting-proof, over-current and over-voltage functions.



ADSL Loop Extender power supply
ADSL Loop Extender power supply designed according to the ITU-T G.961 ISDN remote power supply standard, supply power through twisted pair, includes remote and local power supply. For the users that ADSL/POTS share the same twisted pair, you will need extra twisted pair to supply power to the ADSL loop extender.


Working Temperature -10ºC-+70ºC
Relative Humidity 5%~95% (non-condensing)
Input Voltage AC-220V or DC-48V (-36V -72V)
Output Voltage DC116V
Output Power ≤12W

Loop Extender Outdoor Waterproof Cabinet

Working Temperature
-50ºC-+80ºC
Dustproof and Waterproof Standard IP55
Capacity 1/2/8/16/32

ADSL ADSL2 ADSL2+ Loop Extender Application

ADSL remote powered loop extender application

ADSL remote powered loop extender installation

If you need more information on the remote powered 8 Port Loop Extenders, 16 Port ADSL Loop Extenders, ADSL ADSL2+ 32 Port Loop Extenders, please contact us.

Questions?  Give us a call toll free at +1 (888)-4WAN-LAN Mon.-Fri. 8:30 AM - 5:30 PM EDT/EST and one of our friendly and knowledgeable sales/support staff will be happy to assist you.




Line Powered ADSL ADSL2 ADSL2+ Loop Extenders

Line Powered ADSL ADSL2 ADSL2+ Loop Extenders

ADSL remote powered loop extender illustration

ADSL loop extenders increase reach and bandwidth

Line Powered Loop Extender Overview

    Line Powered Loop Extenders are an important ancillary device in Rural broadband network architecture. ADSL loop extenders not only extends the range between the DSLAM and CPE from 2.3 miles (3.5km) to 4.2 miles (8km), but also supports POTS and improves the access rate of bandwidth. ADSL2+ loop extenders can actually help ISPs to extend reach, increase speed and provide last mile service, this in turn increases revenues by servicing last mile users. ADSL loop extenders supply the basic platform for high bandwidth services and promotes the development Rual broadband service.

Loop Extender Configuration

Line Powered Loop Extenders are made up of a LU (Local Unit) and RU (Remote Unit). Line Powered Loop Extenders provides transmission of data, voice and power signals over one user line, realizes one port for one user and solves the problem of user’s ADSL, IPTV and Video Surveillance service unavailable for long distance to CO. At the same time it can save the line resources.

LU is a 19 inch rack mountable module, one port for one user, easy maintenance. The LU is installed in the CO RU (Outdoor type): one port to multi-port, it can be configured according to the user’s requirements which provides flexibility and convenience.



ADSL line powered loop extender rack mount and enclosure

Line Powered Loop Extender Features

  • Need no fiber
  • One port per user, saving resources
  • LU and RU modular design, rack chassis, flexible configuration, easy maintenance
  • Concentrated monitoring alarm of power supply
  • DSLAM Repeater is on and off without affecting the original POTS service
  • Extend the transmission distance between CO DSLAM and CPE Modem from 2.3 miles (3.5km) to 4.2 miles (8km) while supporting POTS
  • Improve existing ADSL user’s signal quality and bandwidth, extend reach, increase speed and grow customer base by providing last mile services.
  • Completely compatible with all ADSL system suppliers equipment (ADSL, ADSL2/ADSL2+)
  • Loop Extenders support all kinds of ADSL ADSL2 ADSL2+ modems and modem/router products produced by a wide variety of manufacturers
  • Available in Outdoor and Indoor versions, water, dust and lightning proof
  • ADSL ADSL2 ADSL2 + Loop extenders are available in the following port densities 8 Ports, 16 Ports, 32 Ports, and 64 Ports.


Loop Extender RU and LU Technical Specifications

RU Specification:

  • Power Consumption: less than 0.8W/port
  • Work Temperature:-40℃~+80℃
  • Relative Humidity: 5%~95%(non-condensing)
  • Line Code: Support DMT(ITU992.1 standard)

    LU Specification:
  • Input Voltage: DC48V
  • Output Voltage: Max DC 96V
  • Work Current: 10mA

    Powered Mode
    LU power supply is DC-48V, RU could be powered by LU, make sure the RU working properly and stably


    ADSL Line Powered Loop Extender Application

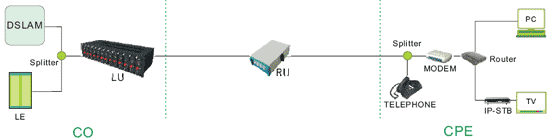

    ADSL line powered loop extender application

    ADSL line powered loop extender installation

    If you need more information on the remote powered 8 Port Loop Extenders, 16 Port ADSL Loop Extenders, ADSL ADSL2+ 32 Port Loop Extenders, or 64 Port ADSL ADSL2 ADSL2+ Loop Extenders please contact us.






  • Questions?  Give us a call toll free at +1 (888)-4WAN-LAN Mon.-Fri. 8:30 AM - 5:30 PM EDT/EST and one of our friendly and knowledgeable sales/support staff will be happy to assist you.
